MODULAR ESPALIERS

Tilting espalier

This espalier is designed to flip single and double-glazing units from the vertical to the horizontal position, and vice versa, quickly and safely. Movement from vertical to horizontal position is made by a special tilting system using pneumatic cylinders.

Full description

Technical Data

Technical Characteristics

Gallery

Video

Full description

Technical Data

Technical Characteristics

Gallery

Video

HEIGHT	H1600 – H2000 – H2500
MAX THICKNESS.	60 mm
SPEED	up to 40 mt/min
WORKTOP	Standard 600mm (+/-50mm) variable upon request
HORIZONTAL HEIGHT	Standard 900mm (+/-50mm) variable upon request

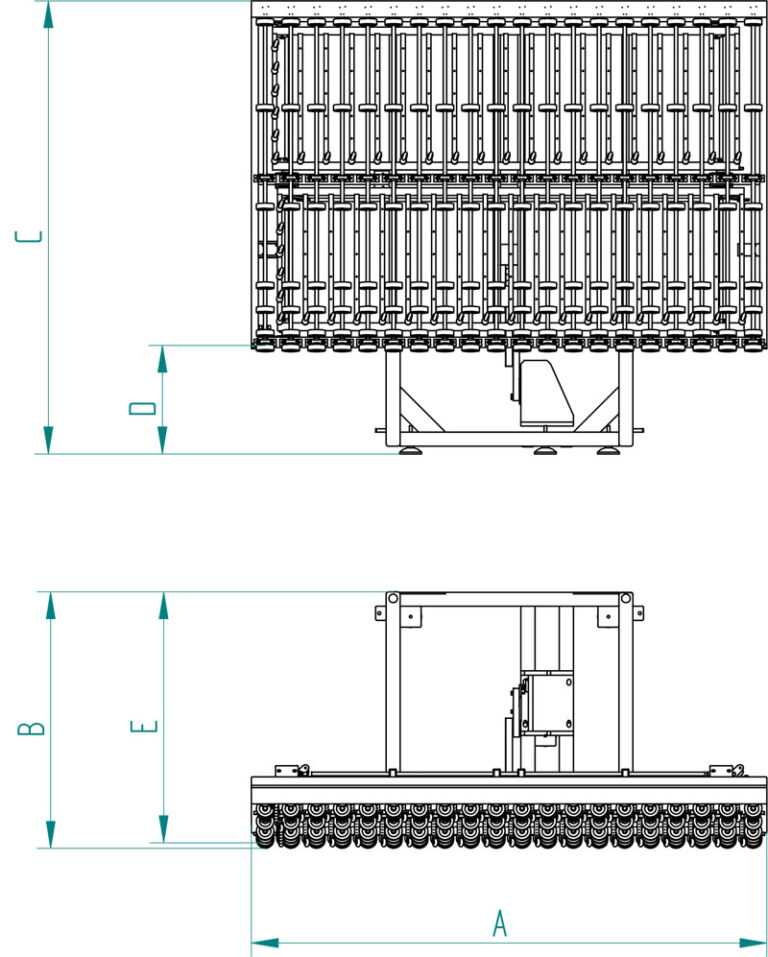

HEIGHT	A	B	C	D	E
H1600	2950	1750	2220	600	1660
H2000	2950	1750	2620	600	1660
H2500	2950	1750	3120	600	1660
