Key Strengths:
| Minimum Glass Size: | L380 mm x H180 mm |
| Maximum Glass Size: | L3000 mm x H2000 mm / H2500 mm “JUMBO” Series L5000 mm x H3210 mm (increased length on request) |
| Minimum Glass Thickness: | 12 mm |
| Maximum Glass Thickness: | 60 mm (increased thickness upon request) |
| Maximum Sealing Depth: | 45mm (greater depth on request) |
| Spacer Thickness: | 6 mm – 24 mm (standard nozzle) 20 mm – 30 mm (optional thicker thickness head) |

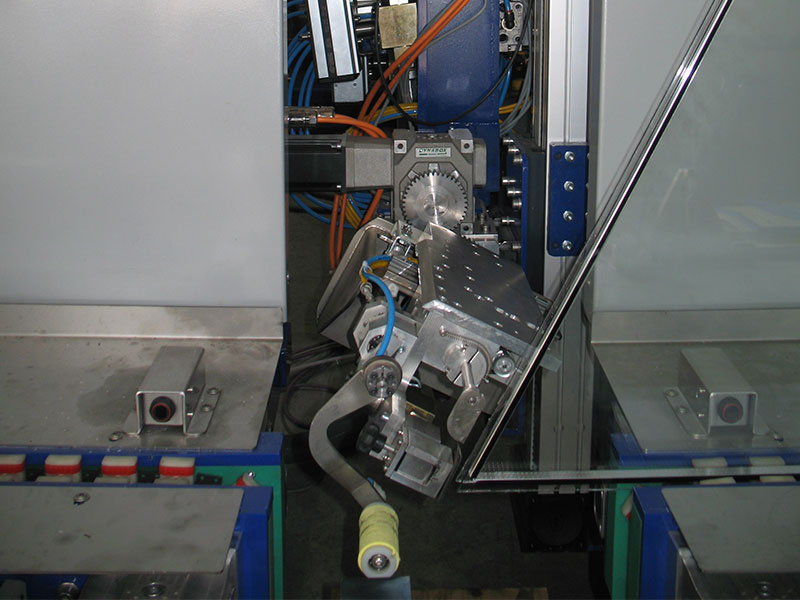

| Sealing Nozzle Positioning: | Automatic |
| Extruders: | N°1/2 for bi-component |
| Maximum Extrusion Speed: | 18 mt/min |
| Maximum Transport Speed: | 40 mt/min max |
| Triple Glass Sealing: | Yes |

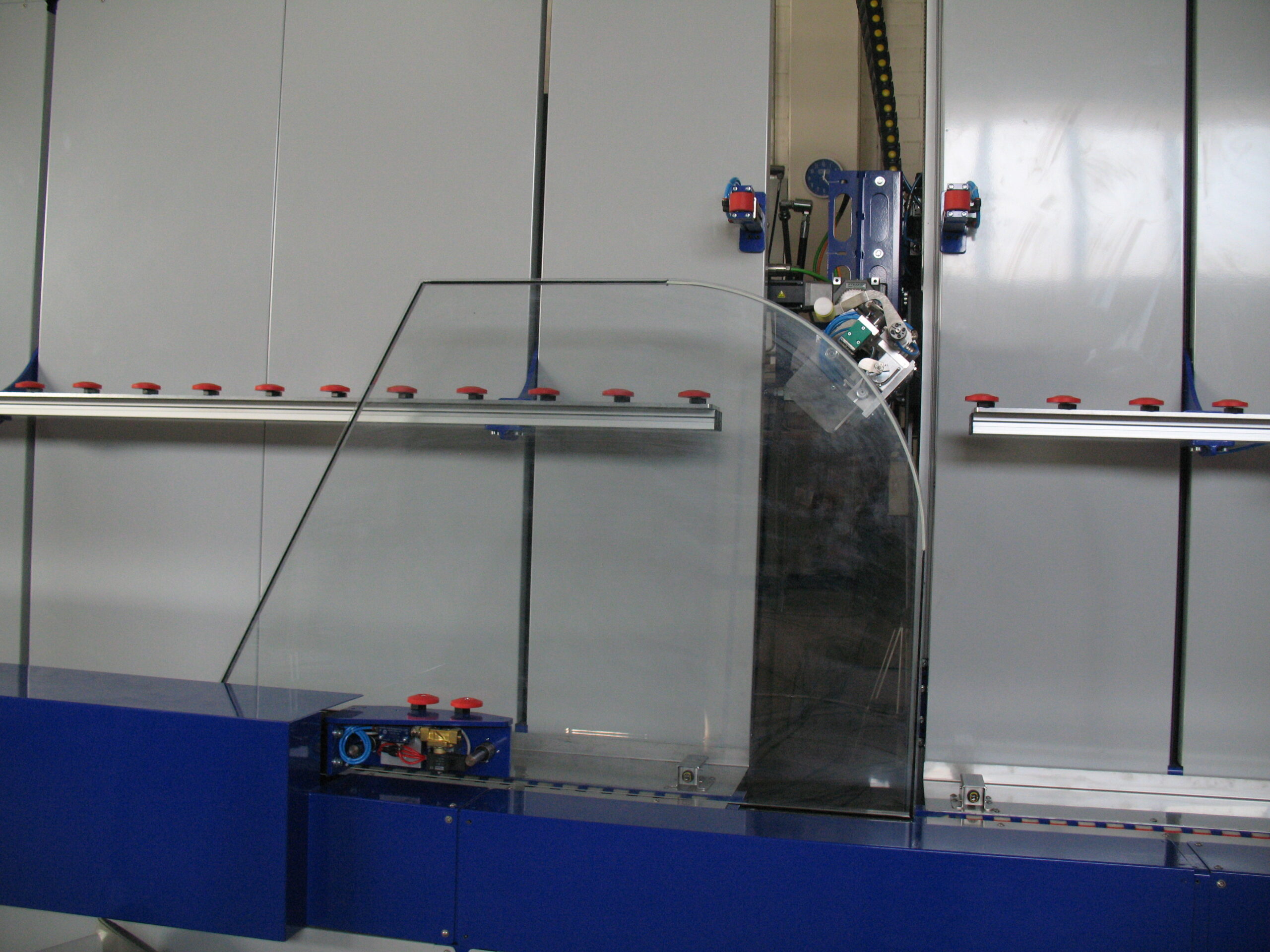

| Shaped Glass Sealing: | Yes (with predefined shapes or DXF file loading) |
| Structural Glass Sealing: | Yes (with optional) |
| Large Glass Panels Unload System: | Yes (with optional) |
| Type of Sealants: | Polysulfide, silicone, or polyurethane |
| A-B Component Ratio: | electronically variable via touchscreen |
| Power Supply: | 10kW (variable based on the model) |
| Voltage: | 400 V – 50Hz3Ph + Ground+ Neutral |
| Maximum load: | 1000Kg |
| Glass Transport Height: | 650 mm (+/-50mm) (height can be adjusted based on requirements) |

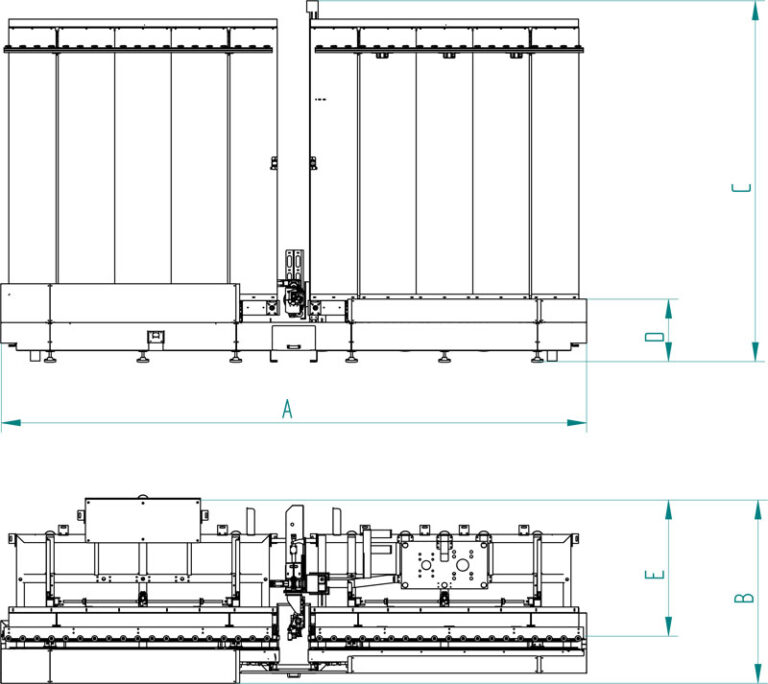

| HEIGHT | A | B | C | D | E |
| H2000 | 6250 | 2200 | 2500 | 500 | 1550 |
| H2500 | 6250 | 2200 | 3000 | 500 | 1550 |
| H3210 | 10500 | 2200 | 3400 | 500 | 1550 |
