Key Strengths:
| Minimum Glass Size: | L400 mm x H200 mm |
| Maximum Glass Size: | L3000 mm x H1600 mm/ H2000 mm/ H2500 mm “JUMBO” Series L5000 mm x H2500 mm /H3210 mm (variable length based on requests) |
| Maximum Glass Thickness: | 60/80/100 mm (larger on request) |
| Maximum Transport Speed: | 40 mt/min |
| Triple Glass Pressing: | Yes (with central glass support bar) |
| Quadruple Glass Pressing: | Yes (with central glass support bar) |
| Shaped Glass Pressing: | Yes |
| Structural Glass Pressing: | Yes (standard: two sides, optional: all sides) |
| Voltage: | 400 V – 50Hz3Ph + Ground+ Neutral |
| Maximum load: | 500Kg mt/ linear |
| Glass Transport Height: | 650 mm (+/-50mm) (height can be adjusted based on requirements) |

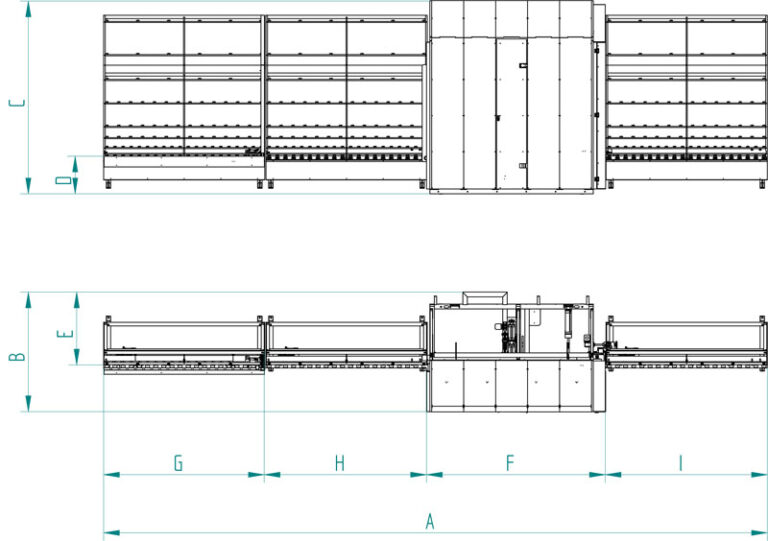

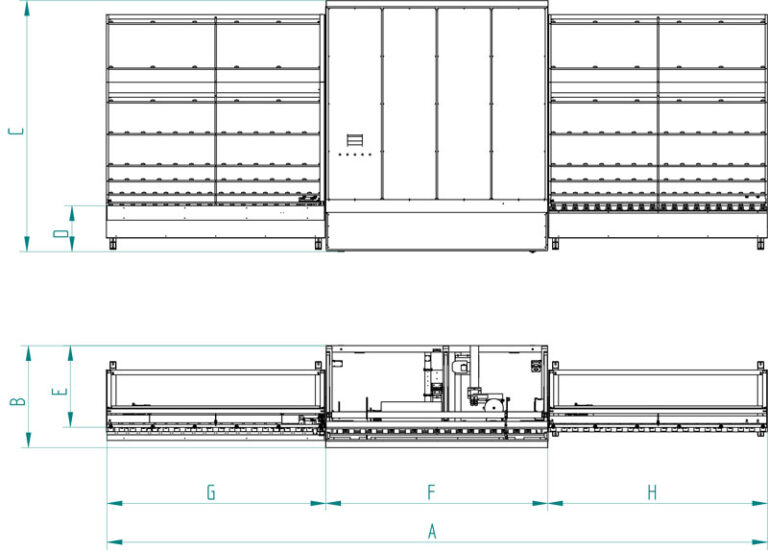

| HEIGHT | A | B | C | D | E | F | G | H |
| H1600 | 8900 | 1355 | 2450 | 600 | 1100 | 3000 | 2950 | 2950 |
| H2000 | 8900 | 1355 | 2850 | 600 | 1100 | 3000 | 2950 | 2950 |
| H2500 | 8900 | 1355 | 3350 | 600 | 1100 | 3000 | 2950 | 2950 |
| H3210 | 12420 | 2200 | 4200 | 600 | 1340 | 5200 | 1800 | 5420 |
