Key Strengths:
| Daily production: | Approximately 500 glass panels per day |
| Available heights: | H1600 mm, H2000 mm, H2500 mm, H3210 mm |
| Minimum glass dimensions: | L400 mm x H200 mm |
| Maximum glass dimensions: | L5000 mm x H3210 mm |
| Minimum glass thickness: | 3 |
| Maximum glass thickness: | 100 |
| Gas injection system: | Yes (it can also be built without gas injection system upon request) |
| Double/Triple/Quadruple glazing production: | Yes (refer to single machine specifications sheet for details) |
| Shaped glass | Yes (refer to single machine specifications sheet for details) |
| Structural Glass | Yes (refer to single machine specifications sheet for details) |
| Maximum Load: | 500Kg mt/ linear |

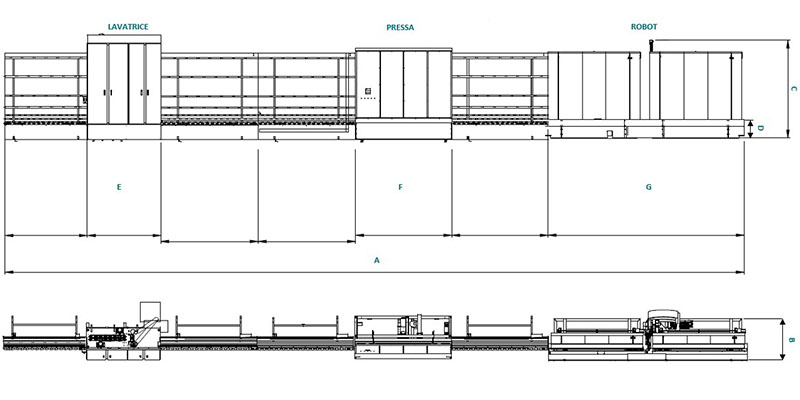

| HEIGHT | A | B | C | D | E | F | G |
| H1600 | 24000 | 1000 | 1600 | 650 | 8500 | 9000 | 6500 |
| H2000 | 24000 | 1000 | 2000 | 650 | 8500 | 9000 | 6500 |
| H2500 | 24000 | 1000 | 2500 | 650 | 8500 | 9000 | 6500 |
| H3210 | 37360 | 1200 | 3210 | 650 | 11020 | 15840 | 10500 |
