| Minimum Glass Size: | L380 mm x H180 mm |
| Maximum Glass Dimensions: | L3500 mm x H2500 mm (higher specifics on request) |
| Maximum Glass Weight Capacity: | 250 Kg |
| Glass Thicknesses: | 3 mm – 60 mm |
| Transport Speed: | up to 40 mt/min |
| Horizontal dimension: | L3000 mm x 2850 mm x H1074 mm |
| Vertical dimension: | L3000 mm x 1800 mm x H3110 mm |
| Structure: | Painted steel |
| Transport System: | Polyurethane rollers |
| Motors: | N° 1 |
| Lifting System: | Pneumatic tilting |
| Sensors: | N°2 |
| Power Supply: | 2 Kw |
| Voltage: | 230 V – 50Hz1Ph + Ground + Neutral |
| Weight: | 1000 kg |
| Glass Transport Height: | 650 mm (+/- 50mm) |

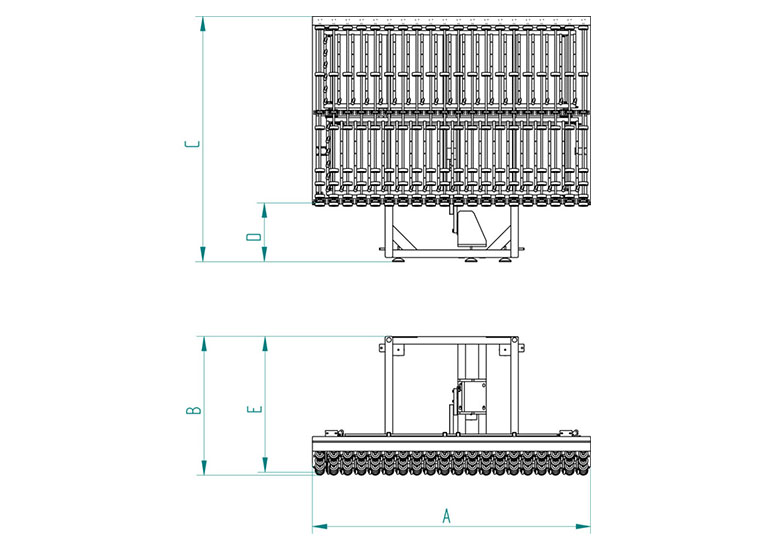

| HEIGHT | A | B | C | D | E |
| H1600 | 2950 | 1750 | 2220 | 600 | 1660 |
| H2000 | 2950 | 1750 | 2620 | 600 | 1660 |
| H2500 | 2950 | 1750 | 3120 | 600 | 1660 |
Disponibile a breve…
