Key Strengths:
| Minimum Glass Size: | L400 mm x H200 mm |
| Maximum Glass Size: | L3000 mm x H2500 mm (variable length based on requests, up to 4 meters) |
| Maximum Glass Thickness: | 60 mm (up to 80 mm upon request) |
| Maximum Transport Speed: | 28 mt/min |
| Gas Filling: | No |
| Triple Glass Pressing: | Yes |
| Shaped Glass Pressing: | Yes |
| Structural Glass Pressing: | Yes (standard: two sides, optional: all sides) |
| Power Supply: | 4kW |
| Voltage: | 400 V – 50Hz3Ph + Ground+ Neutral |
| Maximum load: | 120Kg mt/linear |
| Glass Transport Height: | 650 mm (+/-50mm) (height can be adjusted based on requirements) |

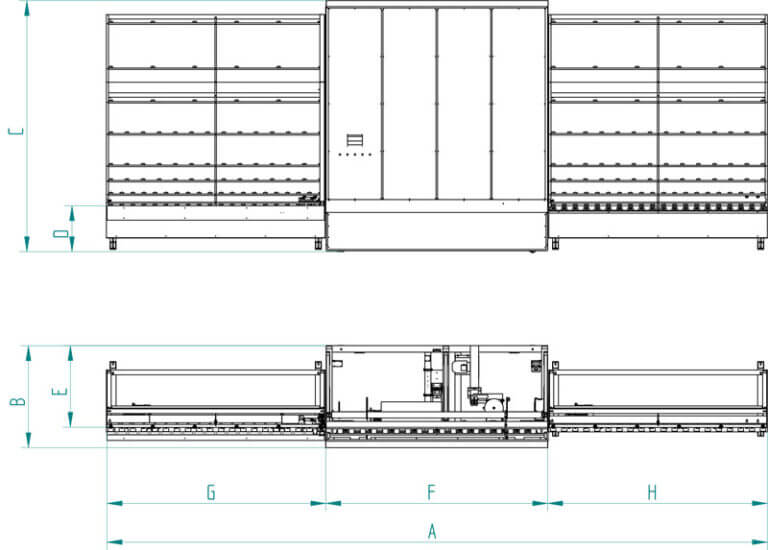

| HEIGHT | A | B | C | D | E | F | G | H |
| H1600 | 8900 | 1355 | 2450 | 600 | 1100 | 3000 | 2950 | 2950 |
| H2000 | 8900 | 1355 | 2850 | 600 | 1100 | 3000 | 2950 | 2950 |
| H2500 | 8900 | 1355 | 3350 | 600 | 1100 | 3000 | 2950 | 2950 |
