| Minimum Glass Size: | 250 mm x 350 mm (variable upon request) |
| Maximum Glass Dimensions: | 2500 mm x 3500 mm (variable upon request) |
| Glass Thicknesses: | 3 mm – 24 mm |
| Transport Speed: | From 1.5 to 4 to 6 meters per minute (variable depending on the model) |
| Overall Dimensions: | L4900 mm x 2450 mm x H1350 mm (variable depending on the model) |
| Structure: | Painted steel RAL9010, internal parts in stainless steel |
| Brushes: | N° 1-2-3 pairs of brushes, Ø150 mm in diameter |
| Tanks: | N° 1-2-3 water collection tanks with pump and filter |
| Drying System: | N° 2-4 blowers |
| Power Supply: | 20 kW (variable depending on the model) |
| Voltage: | 400 V / 50 Hz (three-phase) |
| Weight: | 3000 kg (variable depending on the model) |

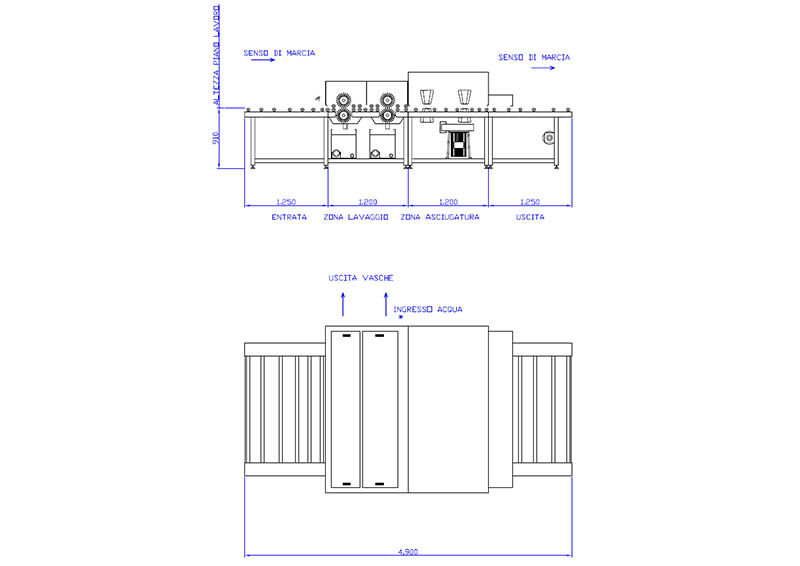

| H GLASS | A | B | C | D | E | F | G | H |
| H1600 | 8400 | 2380 | 2670 | 600 | 1980 | 2500 | 2950 | 2950 |
| H2000 | 8400 | 2380 | 3070 | 600 | 1980 | 2500 | 2950 | 2950 |
| H2500 | 8400 | 2380 | 3570 | 600 | 1980 | 2500 | 2950 | 2950 |
Disponibile a breve…
