Key Strengths:
| Minimum glass dimensions: | L400 x H240 mm |
| Maximum glass dimensions: | L3000 x H2000 mm – H2500 mm – H2700 mm (optional additional conveyor up to L6000mm) |
| Minimum glass thickness: | 3 mm |
| Maximum glass thickness: | 25 mm |
| Transport Speed: | 5 – 30 mt/min |
| Transport Speed: | 30 mt/min |
| Processing Speed: | 1 m²: +/- 30 sec |
| Glass Transport Height: | 505 to 700 mm |
| Voltage: | 400 V – 50Hz3Ph + Ground+ Neutral |
| Minimum Operating Pressure: | 6 bar |
| Maximum Load: | 200 Kg/mt |

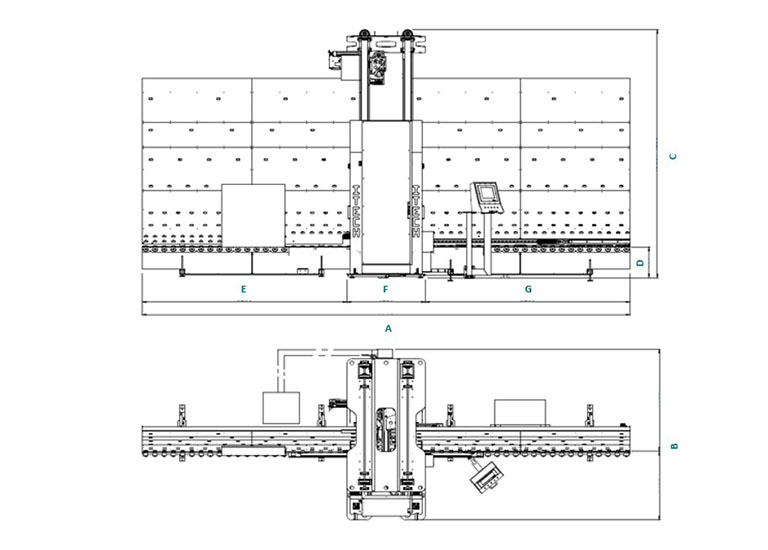

| HEIGHT | A | B | C | D | E | F | G |
| H2000 | 7770 | 2650 | 3600 | 650 | 3500 | 1200 | 3500 |
| H2500 | 7770 | 2650 | 4100 | 650 | 3500 | 1200 | 3500 |
| H2700 | 7770 | 2650 | 4300 | 650 | 3500 | 1200 | 3500 |
