| Minimum Glass Size: | L380 mm x H180 mm |
| Maximum Glass Dimensions: | L3500 mm x H2500 mm (la dimensione può essere +500mm su richiesta) |
| Maximum Glass Weight Capacity: | 250 Kg |
| Transport Speed: | up to 40 mt/min |
| Rotation Angle: | 90° |
| Overall Dimensions: | L3500 mm x 3000 mm x H3200 mm |
| Structure: | Painted steel |
| Monitoring: | Controlled by PLC via Operator Panel |
| Transport System: | Polyurethane rollers |
| Motors: | N° 1 |
| Sensors: | N° 2 |
| Power Supply: | 3kw |
| Voltage: | 400 V – 50Hz3Ph + Ground+ Neutral |
| Weight: | 1000 kg |
| Glass Transport Height: | 650 mm (+/- 50mm) (variable upon request) |

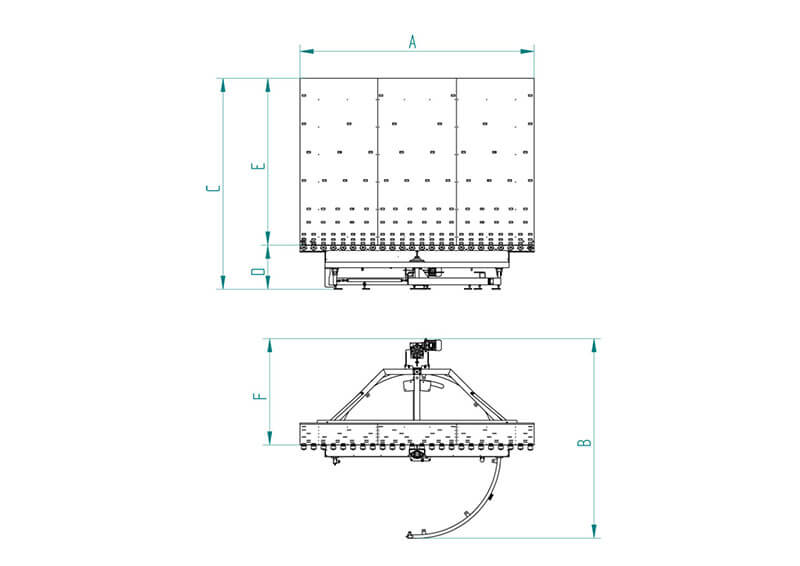

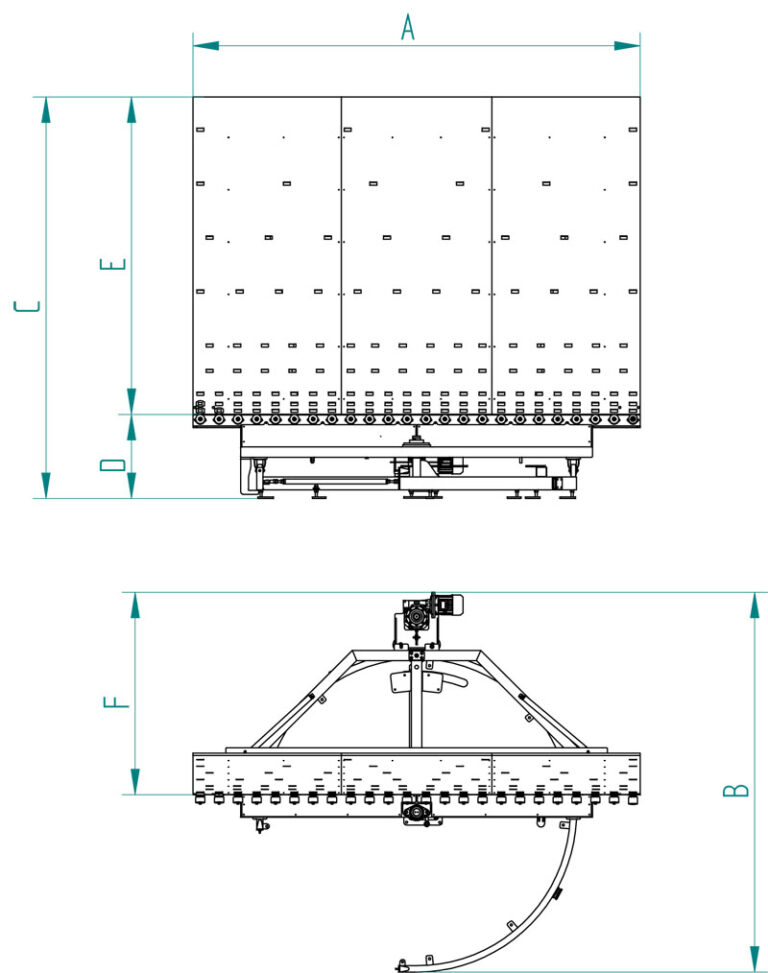

| HEIGHT | A | B | C | D | E | F |
| H2000 | 3500 | 2970 | 2600 | 600 | 2980 | 1615 |
| H2500 | 3500 | 2970 | 3100 | 600 | 2980 | 1615 |
